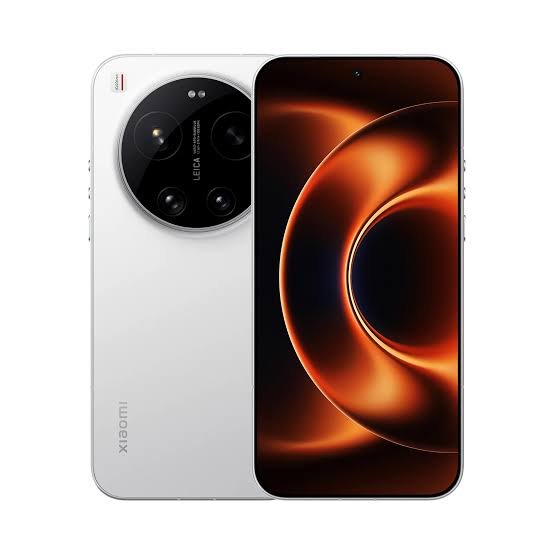

Xiaomi 17 Ultra 16GB/512GB — Complete Specifications

Brand: Xiaomi
Model: Xiaomi 17 Ultra
Variant: 16GB RAM + 512GB Storage
Operating System: Android 16
UI: Xiaomi HyperOS 3

Network & Connectivity

Network: 5G / 4G LTE / 3G / 2G
SIM: Dual Nano-SIM / eSIM availability varies by market
Wi-Fi: Wi-Fi 7
Bluetooth: Bluetooth 6.0
NFC: Supported
GPS: Multi-band GPS, GLONASS, Galileo, BeiDou, QZSS
USB: USB Type-C
IR Blaster: Supported

Processor

Chipset: Qualcomm Snapdragon 8 Elite Gen 5
Manufacturing Process: 3nm
CPU: Octa-core
Prime Cores: 2 × up to 4.6GHz
Performance Cores: 6 × up to 3.62GHz
GPU: Adreno GPU
AI: Qualcomm AI Engine

Memory & Storage

RAM: 16GB LPDDR5X
Internal Storage: 512GB
Storage Type: UFS 4.1
Memory Card: Not supported

Display

Display Size: 6.9-inch
Display Type: Xiaomi HyperRGB OLED / LTPO AMOLED
Resolution: 2608 × 1200 pixels
Refresh Rate: 1–120Hz adaptive
Touch Sampling Rate: Up to 300Hz
Color Depth: 12-bit
Color Gamut: DCI-P3
Peak Brightness: Up to 3500 nits
HDR: HDR10+ and Dolby Vision
PWM Dimming: Up to 2160Hz
Protection: Xiaomi Shield Glass 3.0
Other Features: Wet Touch Technology, DC dimming, Pro HDR, TÜV Rheinland eye-care certifications

Rear Camera

Camera System: Leica triple-camera system

Main Camera: 50MP Leica
Sensor: Light Fusion 1050L
Sensor Size: 1-inch
Aperture: f/1.67
OIS: Supported
Focal Length: 23mm equivalent

Telephoto Camera: 200MP Leica periscope telephoto
Sensor: Samsung HPE
Sensor Size: 1/1.4-inch
Aperture: f/2.39–f/2.96
Focal Length: 75–100mm equivalent
OIS: Supported
Optical Zoom: Continuous 3.2×–4.3×

Ultra-Wide Camera: 50MP
Aperture: f/2.2
Focal Length: 14mm equivalent
Field of View: 115°

Lens: Leica Summilux / VARIO-APO-SUMMILUX optical system
Features: Leica photography styles, Pro mode, portrait photography, RAW photography, optical stabilization and advanced zoom capabilities.

Video Recording

Rear Video: Up to 8K recording
4K Video: Up to 120fps
HDR Video: Supported
Dolby Vision: Supported
Slow Motion: Supported
Professional Video: Pro video and Log recording features vary by mode/region.

Front Camera

Resolution: 50MP
Camera Type: In-display/front selfie camera
Features: HDR, Portrait Mode, AI photography, video recording and selfie enhancement.

Battery & Charging

Battery: 6,000mAh global-market specification
Battery Technology: High-density silicon-carbon
Wired Charging: 90W HyperCharge
Wireless Charging: 50W HyperCharge
Reverse Charging: Supported
Charging Port: USB Type-C

Battery capacity can differ between regional versions; the China version is reported with a larger 6,800mAh battery, while the global specification lists 6,000mAh.

Design & Build

Dimensions: 162.9 × 77.6 × 8.29mm
Weight: Approximately 218.4g
Frame: Premium metal construction

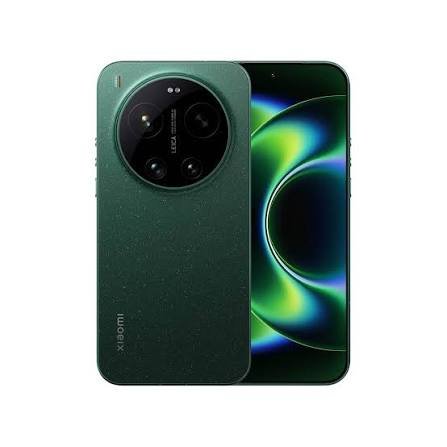

Colors: Black, White, Starlit Green
Water/Dust Resistance: IP68 on global specification

Security & Sensors

Fingerprint: Ultrasonic in-display fingerprint sensor
Face Unlock: AI face unlock
Accelerometer: Supported
Gyroscope: Supported
Proximity Sensor: Supported
Ambient Light Sensor: Supported
Compass: Supported

Audio

Speakers: Stereo speakers
Audio: Dolby Atmos
Hi-Res Audio: Supported
Hi-Res Wireless Audio: Supported
